Which types of third-party barcodes and QR codes does Sortly support?

You can connect the most commonly available barcodes and QR codes to your items (or folders) in Sortly.

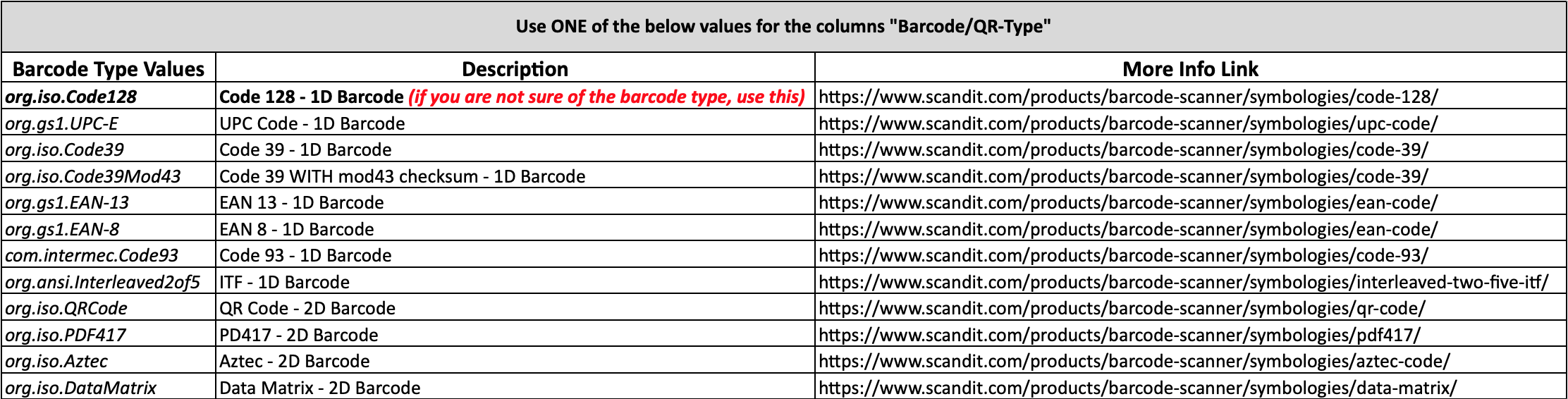

Types of barcode and QR codes supported by Sortly


Barcode Type Values

Description

More Info Link

org.iso.Code128

Code 128 - 1D Barcode (if you are not sure of the barcode type, use this)

https://www.scandit.com/products/barcode-scanner/symbologies/code-128/

org.gs1.UPC-E

UPC Code - 1D Barcode

https://www.scandit.com/products/barcode-scanner/symbologies/upc-code/

org.iso.Code39

Code 39 - 1D Barcode

https://www.scandit.com/products/barcode-scanner/symbologies/code-39/

org.iso.Code39Mod43

Code 39 WITH mod43 checksum - 1D Barcode

https://www.scandit.com/products/barcode-scanner/symbologies/code-39/

org.gs1.EAN-13

EAN 13 - 1D Barcode

https://www.scandit.com/products/barcode-scanner/symbologies/ean-code/

org.gs1.EAN-8

EAN 8 - 1D Barcode

https://www.scandit.com/products/barcode-scanner/symbologies/ean-code/

com.intermec.Code93

Code 93 - 1D Barcode

https://www.scandit.com/products/barcode-scanner/symbologies/code-93/

org.ansi.Interleaved2of5

ITF - 1D Barcode

https://www.scandit.com/products/barcode-scanner/symbologies/interleaved-two-five-itf/

org.iso.QRCode

QR Code - 2D Barcode

https://www.scandit.com/products/barcode-scanner/symbologies/qr-code/

org.iso.PDF417

PD417 - 2D Barcode

https://www.scandit.com/products/barcode-scanner/symbologies/pdf417

org.iso.Aztec

Aztec - 2D Barcode

https://www.scandit.com/products/barcode-scanner/symbologies/aztec-code/

org.iso.DataMatrix

Data Matrix - 2D Barcode

https://www.scandit.com/products/barcode-scanner/symbologies/data-matrix/



If you are unsure if your barcode is supported, you can use this online tool: https://online-barcode-reader.inliteresearch.com/.

You can download the prebuilt template by Sortly through the following link: https://app.sortly.com/advanced-import. With the expert template, you can see a more in-depth view of how these codes can be used through our sample data tab on the CSV/Excel file.
